Name: Maximizing Production Output with High-Speed Checkweighing
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: زيادة الإنتاج إلى أقصى حد باستخدام التقييم السريع
Availability: InStock

منزل المنتجات Automatic Checkweigher

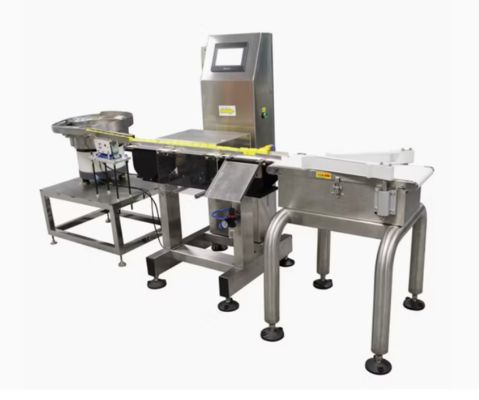

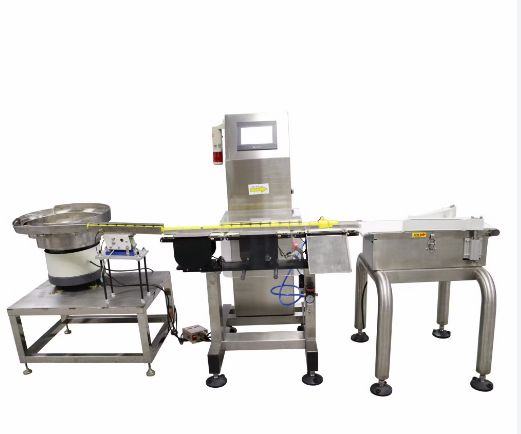

Maximizing Production Output with High-Speed Checkweighing

تفاصيل المنتج:

مكان المنشأ:	الصين
رقم الموديل:	زيادة الإنتاج إلى أقصى حد باستخدام التقييم السريع

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 مجموعة
الأسعار:	قابل للتفاوض
تفاصيل التغليف:	صندوق كارون
وقت التسليم:	10-30 يوم
القدرة على العرض:	2000 مجموعة في الشهر

اتصل

مفصلة وصف المنتج

Product:	Maximizing Production Output with High-Speed Checkweighing	Weighing Rate:	100–600 units/minute
Conveyor Speed:	0.2–2.0 m/s (adjustable)	Stabilization Time:	≤1 second
Weight Tolerance:	±0.1–0.5% of target weight	Repeatability:	±0.05–0.2% of reading
Minimum Weighable Value (e):	1–10g (Class III)	Reject Mechanism Speed:	≤50ms response time
Overload Protection:	120% of max capacity	Operating Temperature:	0°C to 40°C
Vibration Resistance:	±0.2g (ISO 10816-3)	Power Supply:	24V DC ±5% or 100–240V AC, 50/60Hz
EMC Compliance:	EN 61326-1 (Industrial EMI/RFI immunity)	Data Logging Resolution:	Timestamp ±1ms, weight ±0.01g
Interface Protocols:	USB, RS-232, Ethernet, IoT (MQTT/OPC UA)	Legal-for-Trade Certification:	NTEP (US), MID (EU), OIML R51 (Global)
Material Safety:	FDA-compliant (21 CFR) / Stainless Steel 316	Giveaway Reduction:	0.5–2% of product cost
False Reject Rate:	<0.1%
إبراز:	high-speed checkweighing load cell,Mettler Toledo production weighing,industrial checkweighing load cell , Mettler Toledo production weighing , industrial checkweighing load cell

Maximizing Production Output with High-Speed Checkweighing

High-speed checkweighing systems are critical in industries such as food & beverage, pharmaceuticals, and logistics, where throughput, accuracy, and compliance directly impact profitability. Optimizing these systems ensures minimal waste, regulatory adherence, and maximum efficiency.

System Integration & Automation

Seamless PLC/Sensor Communication
- Use EtherCAT or PROFINET for real-time data transfer
- Integrate with MES/ERP systems for batch tracking
AI-Based Dynamic Adjustment
- Machine learning algorithms adjust conveyor speed & tolerances based on product variability

Advanced Technologies for High-Speed Checkweighing

Multi-Head Checkweighers

Parallel weighing stations (2-16 heads) increase speed without sacrificing accuracy
Example: Ishida multi-head weighers achieve 400-600 packs/minute in snack production

Dynamic Weight Compensation

Real-time adjustments for:
- Product positioning errors (e.g., off-center loads)
- Vibration & airflow disturbances (common in high-speed lines)

Vision-Assisted Checkweighing

Combines weight + shape/volume detection to:
- Reduce false rejects (e.g., underfilled but overweight packages)
- Ensure label compliance (e.g., net content regulations)

Key Recommendations

Optimize speed & accuracy with servo-driven conveyors and AI adjustments
Ensure compliance with NTEP, MID, or OIML R51 certifications
Leverage multi-head & vision-assisted systems for higher throughput
Integrate with Industry 4.0 (MES/ERP/SPC) for full traceability

Technical Specifications

Parameter	Specifications
Weighing Rate	100-600 units/minute
Conveyor Speed	0.2-2.0 m/s (adjustable)
Stabilization Time	≤1 second
Weight Tolerance	±0.1-0.5% of target weight
Repeatability	±0.05-0.2% of reading
Minimum Weighable Value (e)	1-10g (Class III)
Reject Mechanism Speed	≤50ms response time
Overload Protection	120% of max capacity
Operating Temperature	0°C to 40°C
Vibration Resistance	±0.2g (ISO 10816-3)
