Name: Checkweighers in Logistics and Shipping
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: موازين فحص متعددة الوظائف مع دمج الوزن، وكشف المعادن، وفحص الأشعة السينية
Availability: InStock

منزل المنتجات جهاز تدقيق الوزن التلقائي

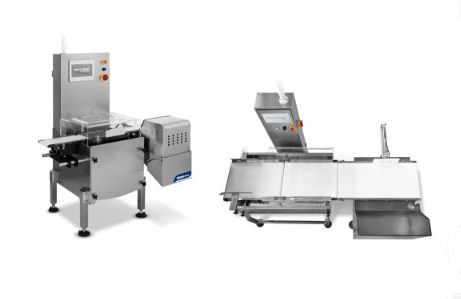

Checkweighers in Logistics and Shipping

تفاصيل المنتج:

مكان المنشأ:	الصين
رقم الموديل:	موازين فحص متعددة الوظائف مع دمج الوزن، وكشف المعادن، وفحص الأشعة السينية

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 مجموعة
الأسعار:	قابل للتفاوض
تفاصيل التغليف:	صندوق كارون
وقت التسليم:	10-30 يوم
القدرة على العرض:	2000 مجموعة في الشهر

اتصل

مفصلة وصف المنتج

Product:	Checkweighers in Logistics and Shipping	Capacity Range:	50g – 300kg
Accuracy:	±0.1% or ±5g (whichever is greater)	Weighing Speed:	0.3–2 seconds per item
Volumetric Accuracy:	±5mm L/W/H	Scanning Height:	50–1000mm
Conveyor Width:	400–1200mm	Max Package Size:	1200×800×800mm
Belt Type:	PU-coated, high-friction	Communication Protocols:	REST API, JSON, XML
Barcode Types:	1D/2D, QR, RFID	Data Output:	10–100ms latency
Operating Temperature:	-10°C to +50°C	Humidity Resistance:	10–95% non-condensing
Legal-for-Trade:	NTEP, MID 2014/32/EU	Safety Standards:	UL 61010-1, CE
Auto-Tare:	10–50kg preset container weights	Dynamic Weighing:	0.5–5m/min belt speed
Overload Protection:	150% of capacity
إبراز:	Mettler Toledo load cell weighing inspection,manufacturing weighing inspection techniques,logistics load cell weighing solutions , manufacturing weighing inspection techniques , logistics load cell weighing solutions

Checkweighers in Logistics and Shipping

Attribute	Value
Capacity Range	50g – 300kg
Accuracy	±0.1% or ±5g (whichever is greater)
Weighing Speed	0.3–2 seconds per item
Volumetric Accuracy	±5mm L/W/H
Scanning Height	50–1000mm
Conveyor Width	400–1200mm
Max Package Size	1200×800×800mm
Belt Type	PU-coated, high-friction
Communication Protocols	REST API, JSON, XML
Barcode Types	1D/2D, QR, RFID
Data Output	10–100ms latency
Operating Temperature	-10°C to +50°C
Humidity Resistance	10–95% non-condensing
Legal-for-Trade	NTEP, MID 2014/32/EU
Safety Standards	UL 61010-1, CE
Auto-Tare	10–50kg preset container weights
Dynamic Weighing	0.5–5m/min belt speed
Overload Protection	150% of capacity

Introduction to Logistics Checkweighing

Checkweighers in logistics and shipping operations serve as critical quality control and cost management tools, ensuring:

Accurate freight billing (prevents revenue loss from under/overcharging)
Regulatory compliance (meets trade laws and carrier requirements)
Package integrity verification (detects missing items or incorrect shipments)
Automated sorting (diverts non-compliant parcels pre-shipment)

With e-commerce growth, modern systems now handle 50-1,000+ packages/hour while integrating with warehouse management systems (WMS).

System Types for Logistics

In-Motion Checkweighers

Throughput: 300-1,200 parcels/hour
Applications:
- E-commerce fulfillment centers (diverts underweight shipments missing items)
- Postal sorting hubs (verifies postage-paid weight classes)

Static Dimensioning Scales

Accuracy: ±0.05% for freight billing
Features:
- Pallet weighing with corner load compensation
- Over-dimension alerts for carrier restrictions

Mobile Checkweighing Stations

Portable units with battery operation
Used for:
- Loading dock verification
- Cross-docking QC checks

Modern logistics checkweighers have evolved into smart shipping hubs, combining precision weighing, automated sorting, and carrier compliance in one system. Proper implementation typically pays for itself in 3-9 months through freight savings alone.
