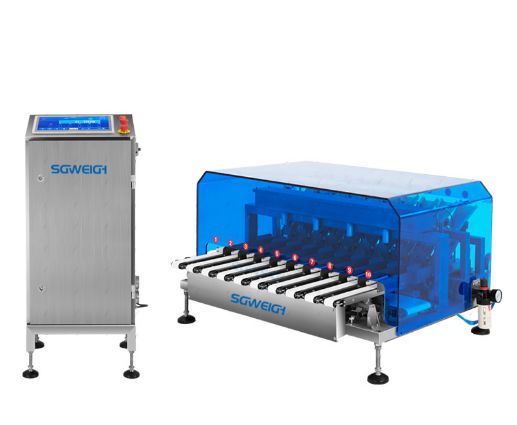

Name: Multi-Functional Checkweighers with Combining Weight, Metal Detection
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: موازين فحص متعددة الوظائف مع دمج الوزن، وكشف المعادن، وفحص الأشعة السينية
Availability: InStock

منزل المنتجات Automatic Checkweigher

Multi-Functional Checkweighers with Combining Weight, Metal Detection

تفاصيل المنتج:

مكان المنشأ:	الصين
رقم الموديل:	موازين فحص متعددة الوظائف مع دمج الوزن، وكشف المعادن، وفحص الأشعة السينية

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 مجموعة
الأسعار:	قابل للتفاوض
تفاصيل التغليف:	صندوق كارون
وقت التسليم:	10-30 يوم
القدرة على العرض:	2000 مجموعة في الشهر

اتصل

مفصلة وصف المنتج

Product:	Multi-Functional Checkweighers	Machine Type:	Combined Checkweigher + Metal Detector + X-Ray Inspection
Model Range:	CW-MD-XR Series (Various sizes)	Throughput Capacity:	100-600 packages per minute
Product Size Range:	20mm-300mm (L) × 20mm-250mm (W) × 5mm-150mm (H)	Maximum Product Weight:	5kg (standard), 20kg (heavy-duty options)
Detection Capability:	±0.1g–5g accuracy	Throughput:	100–600 ppm
Belt Width:	150–600mm	Rejection Method:	Pusher/Air Blast
Power Requirements:	110V/220V, 50/60Hz	Data Output:	CSV, SQL, ERP integration
إبراز:	multi-functional checkweighers with metal detection,checkweighers with combining weight,Mettler Toledo load cell checkweighers , checkweighers with combining weight , Mettler Toledo load cell checkweighers

Multi-Functional Checkweighers with Combining Weight, Metal Detection

Overview

Multi-functional checkweighers combine weight verification, metal detection, and X-ray inspection into a single, high-efficiency system. These advanced machines are widely used in food, pharmaceutical, and packaging industries to ensure product safety, compliance, and quality control while optimizing production line efficiency.

Key Features & Benefits

1. Three-in-One Inspection System

Checkweighing - Ensures products meet exact weight specifications (±0.1g to ±5g accuracy)
Metal Detection - Identifies ferrous, non-ferrous, and stainless steel contaminants (sensitivity down to 0.3mm)
X-Ray Inspection - Detects foreign objects (bones, glass, stones) and verifies fill levels, seal integrity, and missing components

2. Enhanced Production Efficiency

Single-Point Inspection - Eliminates the need for separate machines, reducing footprint and conveyor length
High-Speed Operation - Handles 100-600+ packages per minute (depending on product size)
Automated Rejection - Uses pushers, air jets, or diverter arms to remove defective products

3. Compliance & Traceability

Meets FDA, HACCP, BRC, IFS, EU & USDA regulations
Data Logging & Reporting - Stores weight, metal, and X-ray inspection results for audits and analytics
Cloud Connectivity - Enables real-time monitoring (Industry 4.0/IoT-ready)

Specifications

Parameter	Specifications
Machine Type	Combined Checkweigher + Metal Detector + X-Ray Inspection
Model Range	CW-MD-XR Series (Various sizes)
Throughput Capacity	100-600 packages per minute
Product Size Range	20mm-300mm (L) × 20mm-250mm (W) × 5mm-150mm (H)
Maximum Product Weight	5kg (standard), 20kg (heavy-duty options)
Detection Capability	±0.1g-5g accuracy
Throughput	100-600 ppm
Belt Width	150-600mm
Rejection Method	Pusher/Air Blast
