C35 WD Inspection System Checkweigher for Wet Harsh Environments

C35 WD Inspection System Checkweigher for Wet Harsh Environments

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: Mettler Toledo
رقم الموديل: C35 نظام التفتيش WD
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 مجموعة
الأسعار: قابل للتفاوض
تفاصيل التغليف: علبة كارون
وقت التسليم: 10-30days
القدرة على العرض: 2000 مجموعة شهريا
اتصل
مفصلة وصف المنتج
منتج: C35 نظام التفتيش WD تدفق المنتجات: النقل
تطبيق التفتيش: التحكم في الوزن صناعة: الكيميائية، الأغذية والمشروبات، الأدوية والتكنولوجيا الحيوية
دقة وزن: من ± 0.1 جم وزن المنتج الأقصى: 7 كغ
سرعة خط الحد الأقصى: 90 م/دقيقة الحد الأقصى للإنتاجية: 250 جزء في المليون
الاتصال: Ethernet TCP/IP fieldbus opc ua خاصية المنتج: حزم متوسطة الحجم ، حاوية مفتوحة ، حاوية مستديرة ، حزم متوسطة صغيرة ، رطبة
قطاع الصناعة: البيرة والنبيذ وغيرها من المشروبات الكحولية الألبان واللحوم والدواجن والمأكولات البحرية ، والزيوت وا نوع التغليف: زجاجة، حزم، زجاجات، صحون، غير معبأة
إبراز:

C35 WD checkweigher for harsh environments,Mettler Toledo inspection system,wet environment checkweigher inspection system

,

Mettler Toledo inspection system

,

wet environment checkweigher inspection system

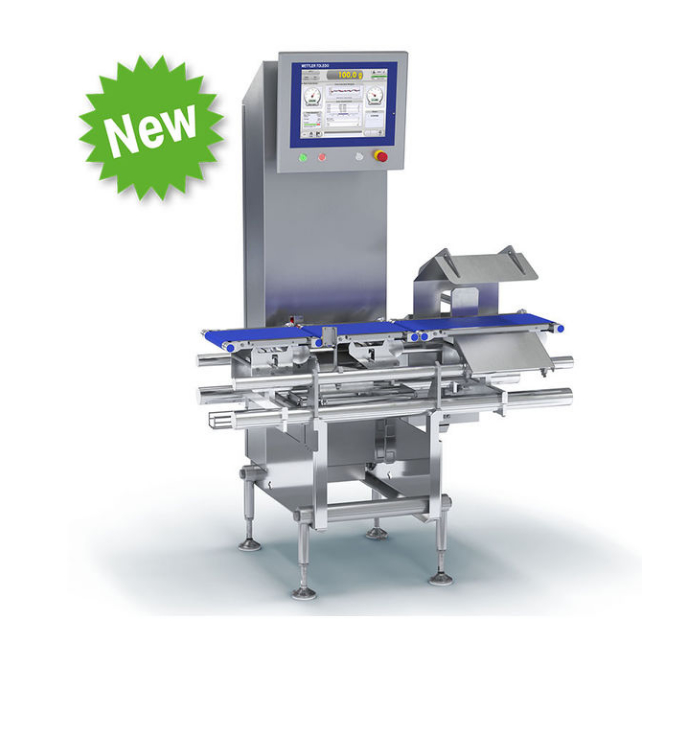

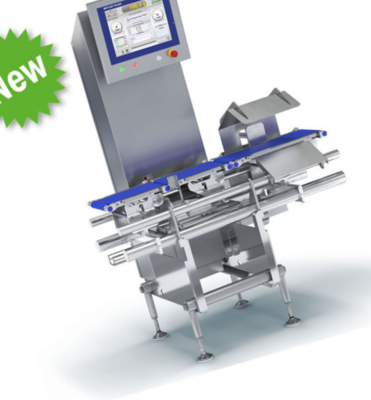

C35 WD Inspection System Checkweigher for Wet Harsh Environments
Product Overview

The Mettler Toledo C35 WD Inspection System is a high-performance, combination quality control solution specifically engineered to thrive in the most demanding washdown environments. By integrating an advanced checkweigher and a highly sensitive metal detector into a single compact system, the C35 WD delivers comprehensive product inspection and protection in wet and harsh production areas.

Key Features
  • Precision and Versatility: Built for harsh environments to withstand high-pressure cleaning with very high precision at fast speeds
  • Highest Accuracy: MID-certified weighing precision helps comply with regulations and reduces product waste
  • Hygienic Design: Easy access for cleaning with sloped surfaces to prevent liquid retention
  • Resilient Construction: Entire IP69-rated system withstands high-pressure cleaning and caustic detergents
Technical Specifications
Attribute Value
Product Flow Conveyor
Weighing Accuracy from ±0.1 g
Max Product Weight 7 Kg
Max Line Speed 90 m/min
Max Throughput 250 ppm
IP Rating IP69
Max Product Width 400 mm
Weighing Technology EMFR
HMI 15" Touchscreen
Industry Applications

Chemical, Food & Beverage, Pharma & Biotech, including:

  • Beer, Wine and Other Alcoholic Beverages
  • Dairy, Meat & Poultry & Seafood
  • Oils and Fats, Pet Food and Animal Feed
  • Ready Meals, Snack Foods
  • Water and other Non-Alcoholic Beverages
Compatible Packaging Types

Bottle, Bundles, Glass, Trays, Unpackaged

C35 WD Inspection System Checkweigher for Wet Harsh Environments 0
