Name: MT1041 75kg Load Cell – Robust Weight Sensor with 6 Meter Wire
Brand: SMARTWEIGH INSTRUMENT CO.,LTD
SKU: تحميل خلية MT1041-75KG 6M
Availability: InStock

منزل المنتجات

MT1041 75kg Load Cell – Robust Weight Sensor with 6 Meter Wire

تفاصيل المنتج:

مكان المنشأ:	الصين
اسم العلامة التجارية:	Mettler Toledo
رقم الموديل:	تحميل خلية MT1041-75KG 6M

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 مجموعة
الأسعار:	قابل للتفاوض
تفاصيل التغليف:	علبة كارون
وقت التسليم:	10-30days
القدرة على العرض:	2000 مجموعة شهريا

اتصل

مفصلة وصف المنتج

المنتج:	خلية تحميل ميتلر توليدو	السعة القصوى:	196 رطل (75 كجم)
المواد:	الألومنيوم ، ممر	علم القياس:	NTEP III 5،000D OIML C3
الدقة:	معيار	تصنيف الحماية:	IP67
حجم المنصة (LXW):	400 مم × 400 مم	الاتصال:	التناظرية
كابل:	20 قدم (6 م)
إبراز:	MT1041 75kg load cell,robust weight sensor with wire,Mettler Toledo load cell sensor , robust weight sensor with wire , Mettler Toledo load cell sensor

MT1041 75kg Load Cell – Robust Weight Sensor with 6 Meter Wire

A compression weigh module designed so that its top plate and base plate will be squeezed toward each other when weight is applied. It can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing.

Product Attributes

Attribute	Value
Product	Mettler Toledo Load Cell
Maximum Capacity	196 lb (75 kg)
Material	Aluminum, passivated
Metrology	NTEP III 5,000d OIML C3
Accuracy	Standard
Protection Rating	IP67
Platform Size (LxW)	400 mm x 400 mm
Connectivity	Analog
Cable	20 ft (6 m)

Key Features

For Mid Size Platforms

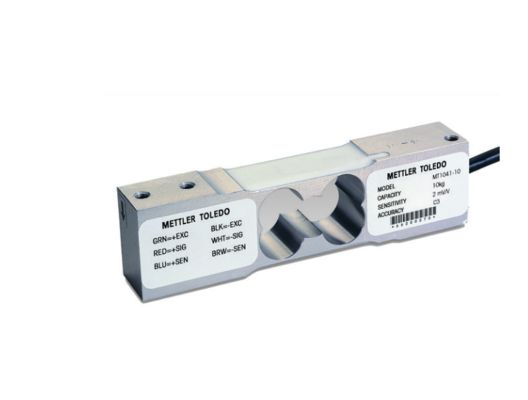

The MT1041 is a high performance single point load cell. The load cell is off-center compensated, enabling it to cope with platform moments. Metrology approvals include OIML as standard.

Reliable Strain Gage Technology

Usage of premium aluminum materials and strain gage technology guarantees long-term durability.

Hazardous Area Usage

ATEX Zone 1/21/2/22 approvals as standard. No need to ask for options or stock variations - one fits all applications.

Technical Specifications

Material: Aluminum, passivated

Material No: 72208504

Maximum Capacity: 196 lb (75 kg)

Protection Rating: IP67

Connectivity: Analog

Cable: PVC, 20 ft (6 m)

Platform Size (LxW): 400 mm x 400 mm

Accuracy: Standard

Metrology: NTEP III 5,000d, OIML C3
