| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | Mettler Toledo |
| رقم الموديل: | وزن وحدة SWB805 316 4.4T/10K C1 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | علبة كارون |
| وقت التسليم: | 10-30days |
| القدرة على العرض: | 2000 مجموعة شهريا |
| المنتج: | خلية تحميل ميتلر توليدو | السعة القصوى: | 500 رطل (220 كجم) |
|---|---|---|---|
| المواد: | الصلب المقاوم للصدأ 304 | علم القياس: | OIML C3 ، NTEP III 5M |
| تحميل خلية: | SLB815 | الدقة: | معيار |
| تصنيف الحماية: | IP68/69K | البيئة / المواد: | غسل / صحية متكررة |
| موافقة خطرة: | ATEX ، FM ، CFM | الأهمية: | معيار |
| كابل: | 5 م | ||
| إبراز: | stainless steel weigh module,500lb load cell sensor,Mettler Toledo load cell,500lb load cell sensor,Mettler Toledo load cell |
||

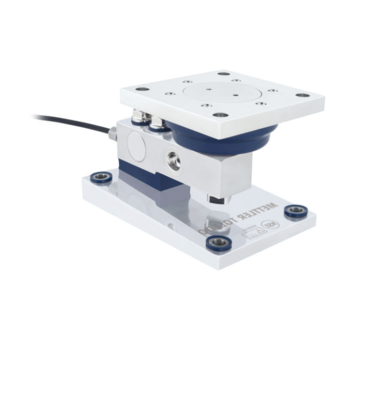

Our weigh module is designed according to hygienic principles and certified by NSF, reducing contamination risk to a minimum.
Increased efficiency thanks to highly-polished, self-draining surfaces that clean and dry quickly. Visual inspection is easy due to the open design.
Our weigh modules are shipped in a locked position and can be integrated without interfering with the sealing, eliminating contamination risks.
A compression weigh module designed so that its top plate and base plate compress when weight is applied. It can be attached directly to the ground, piers, or structural beams. These modules are typically used in multiples under large platform scales such as truck and railroad track scales, as well as in tank, hopper, and silo weighing applications. Capacities range from 3 kg to 300 tons.
| Attribute | Value |
|---|---|
| Product | Mettler Toledo Load Cell |
| Maximum Capacity | 500 lb (220 kg) |
| Material | 304 Stainless steel |
| Metrology | OIML C3, NTEP III 5M |
| Load Cell | SLB815 |
| Accuracy | Standard |
| Protection Rating | IP68/69k |
| Environment / Material | Frequent wash-down / Hygienic |
| Hazardous Approval | ATEX, FM, cFM |
| Criticality | Standard |
| Cable | 5 m |
