| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | Mettler Toledo |
| رقم الموديل: | وحدة وزن SWB505 316 550 كجم/1.25K C6 |
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | علبة كارون |
| وقت التسليم: | 10-30days |
| القدرة على العرض: | 2000 مجموعة شهريا |
| المنتج: | خلية تحميل ميتلر توليدو | السعة القصوى: | 1،250 رطل (550 كجم) |
|---|---|---|---|
| المواد: | الفولاذ المقاوم للصدأ V4A (AISI 316) | علم القياس: | NTEP III 10،000D OIML C6 |
| تحميل خلية: | 0745A 5M (16.6 قدم) كابل | الدقة: | عالية |
| تصنيف الحماية: | IP68 NEMA 6/6P | البيئة / المواد: | غسل / صحية متكررة |
| موافقة خطرة: | ATEX ، FM ، CFM | الأهمية: | معيار |
| إبراز: | 316 stainless steel load cell,550kg industrial weighing module,C6 class load cell,550kg industrial weighing module,C6 class load cell |
||
A high-precision compression weigh module designed for industrial weighing applications. Its stainless steel construction and robust design make it ideal for demanding environments including frequent wash-down and hygienic applications.
| Attribute | Value |
|---|---|
| Product | Mettler Toledo Load Cell |
| Maximum Capacity | 1,250 lb (550 kg) |
| Material | Stainless Steel V4A (AISI 316) |
| Metrology | NTEP III 10,000d OIML C6 |
| Load Cell | 0745A 5m (16.6ft) cable |
| Accuracy | High |
| Protection Rating | IP68 NEMA 6/6P |
| Environment/Material | Frequent wash-down / Hygienic |
| Hazardous Approval | ATEX, FM, cFM |
| Criticality | Standard |

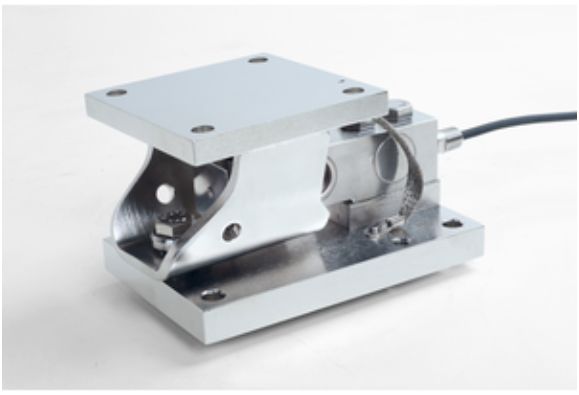

This compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied. It can be attached directly to the ground, piers or structural beams. Typically used in multiples under large platform scales such as truck and railroad track scales, and in tank, hopper and silo weighing applications.
The SWB505 MultiMount Stainless Steel 316 weigh module offers exceptional value with its combination of high accuracy, durability, and ease of installation, making it an economical choice for industrial weighing systems.
