SLB215 and SLB415 Economical Beam Load Cells for Industrial Weighing Applications

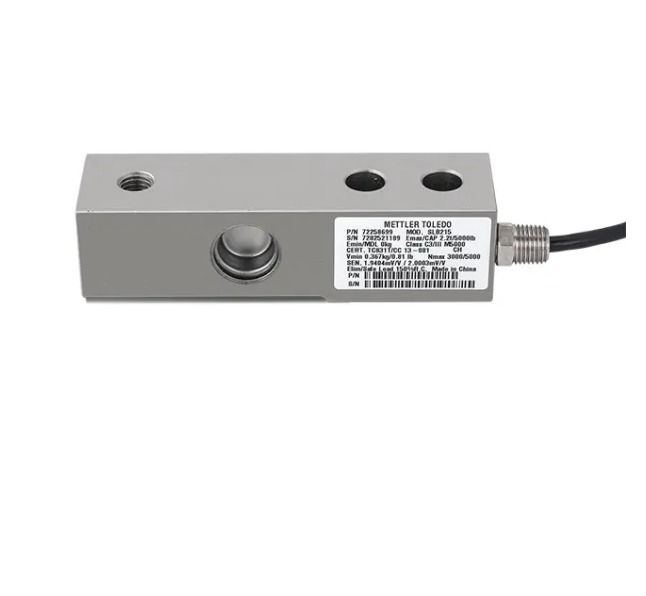

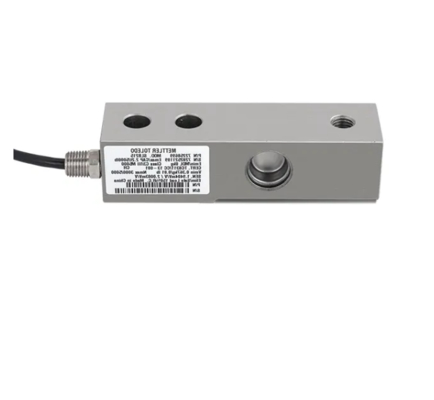

Economical beam load cells allow you to convert structures into weighing systems at a minimal cost. The SLB215 beam load cell is equipped with a threaded load-introduction hole. This makes the load cell easy to integrate into new or existing weighing systems. The threaded load-introduction hole is the optimum solution for floor scales and weighing platforms where a threaded foot provides easy height adjustment. The SLB415 beam load cell has a blind load-introduction hole for use with a rocker pin, the best choice for higher precision applications.

SLB215 and SLB415 load cells are made from nickel-plated alloy steel, hermetically sealed by laser welding, and rated IP67 for dust and moisture protection. This safeguards the load cells for the best reliability, stability, and measuring performance.

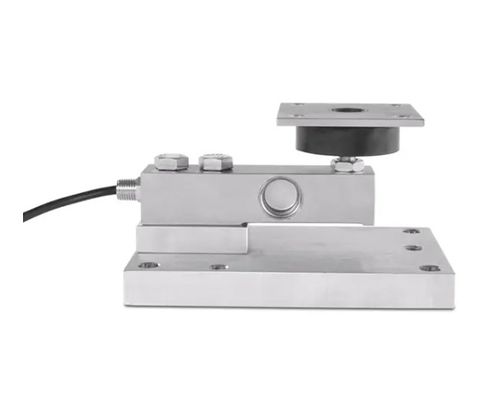

The optional Expansion and Vibration Kit (EVK/EVKT) protects measurement performance despite thermal expansion/contraction and vibration. The EVK/EVKT in combination with a base plate is a cost-effective solution, but any required safety restraint must be provided externally. The Foot Kit (FTK/FTKT) is very convenient for floor scale applications where height adjustment is important.
